DSAN Touch Panel Interface for Limitimer
DSAN 공식 제품 정보를 기준으로 정리한 발표 시간 및 신호 관리 장비입니다. 설치 환경과 시스템 구성에 따라 적용 사양과 옵션이 달라질 수 있습니다.

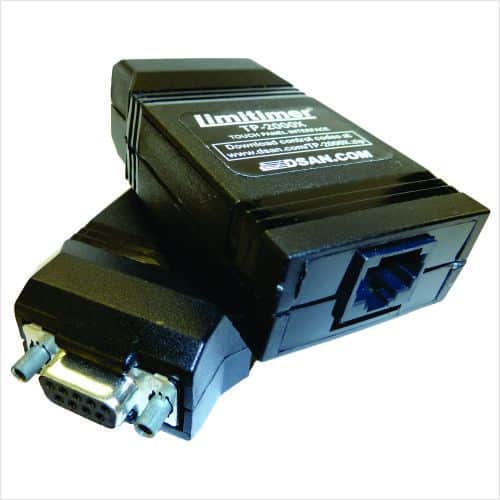

Cat-5 to DB-9 adapter to pass ASCII control codes between Limitimer and a touch panel central controller. Includes 7-foot Cat-5 cable
주요 특징
- Limitimer can be controlled by popular touch panel systems. Use the Touch Panel Interface to pass ASCII control codes between Limitimer and the touch panel central controller.
- The touch panels can access all timer functions including setting the time and starting and stopping the clock. Real-time Time Remaining, phase lights and other data from the timer may be displayed on the touch panels. In addition, when using our large digital Audience Signal Lights, the touch panel can change the display from a count-down clock to a 12-hour time clock and vice versa.
- For additional information, see Touch Panel Interface – Additional Information
세부 사양
| Ports | One RJ45 (RS485) and one DB-9 |
|---|---|
| 12-V external power supply | |
| Dimensions | |
| 3¼ “ x 1½” x ¾“ | |
| Weight | 2 oz. |
