DSAN Podium Signal Light
발표 시간 및 신호 관리 장비

DSAN Podium Signal Light

DSAN 공식 제품 정보를 기준으로 정리한 발표 시간 및 신호 관리 장비입니다. 설치 환경과 시스템 구성에 따라 적용 사양과 옵션이 달라질 수 있습니다.

Podium Signal Light for Limitimer

주요 특징

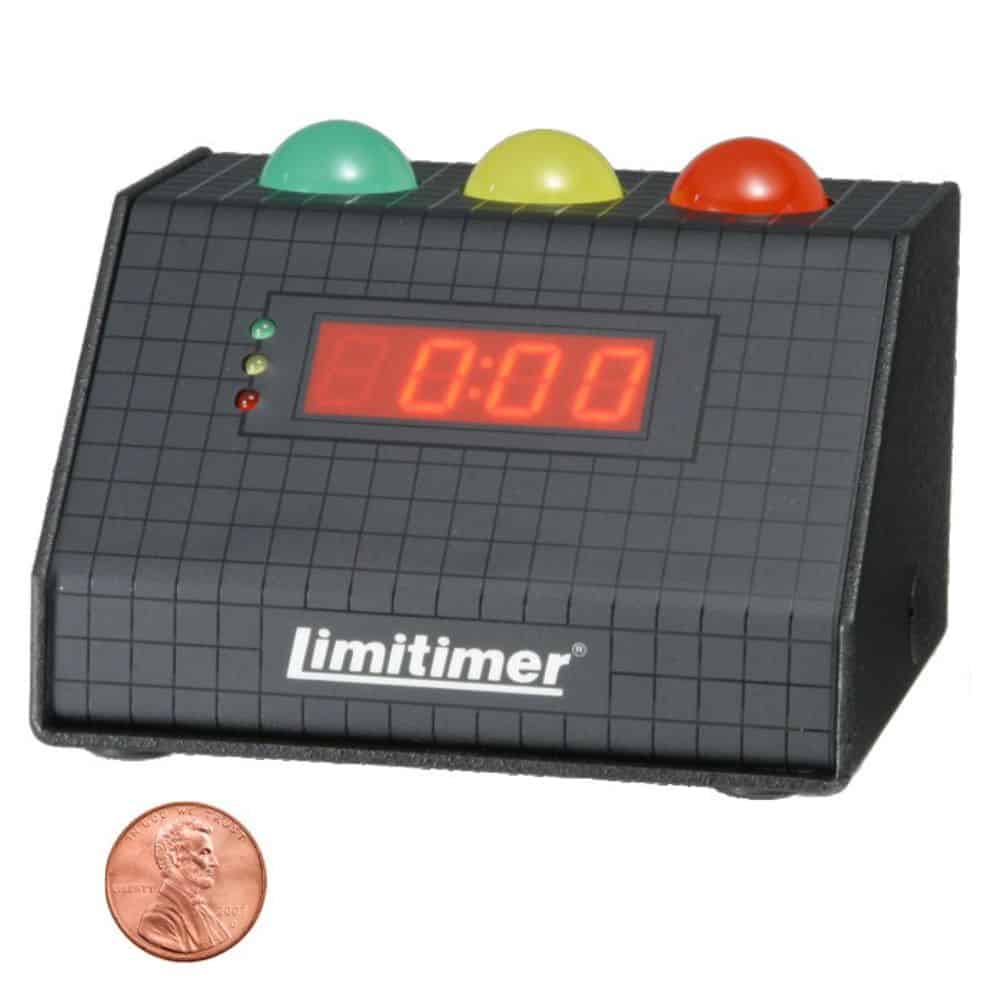

• PSL-20V is a small light pod designed to sit on the top or in the well of a lectern. The signal light contains a small speaker to provide (optionally) audio cues. The sloped front contains a 4-digit 7-segment display showing time remaining and small green-yellow-red phase lights. Top surface has 20-mm LED phase lights that can be seen from 100-feet. You may drive up to three PSL-20Vs from one timer.
• By using our Power Booster (Model PSL-PB6) you can interpose additional power and drive additional signal lights over longer cable runs.
• The switch settings control local behavior:
• Which programs are to be displayed
• Types of sound cues – beep, buzz, chime or none
• Whether time display continues to count (up) after zero
• Whether top lights are enabled
• Whether digital display is enabled
• Sound cue volume – high or low
• Twin RJ45 jacks allow daisy-chaining multiple signal lights to the timer. Use XLR to Cat-5 Adaptor (Model CAT5-ADP-L) to connect to timer with XLR cable.

세부 사양

공식 자료

• DSAN 공식 제품 페이지
