DSAN Laptop Sound Port (Multi Input Direct Box)
DSAN 공식 제품 정보를 기준으로 정리한 PC·방송 오디오 연결 장비입니다. 설치 환경과 시스템 구성에 따라 적용 사양과 옵션이 달라질 수 있습니다.
An "extension cord" for your crowded audio mixer. Attach a variety of devices through this passive direct box to dual XLR outputs, providing mono balanced, mic-level signals.
주요 특징

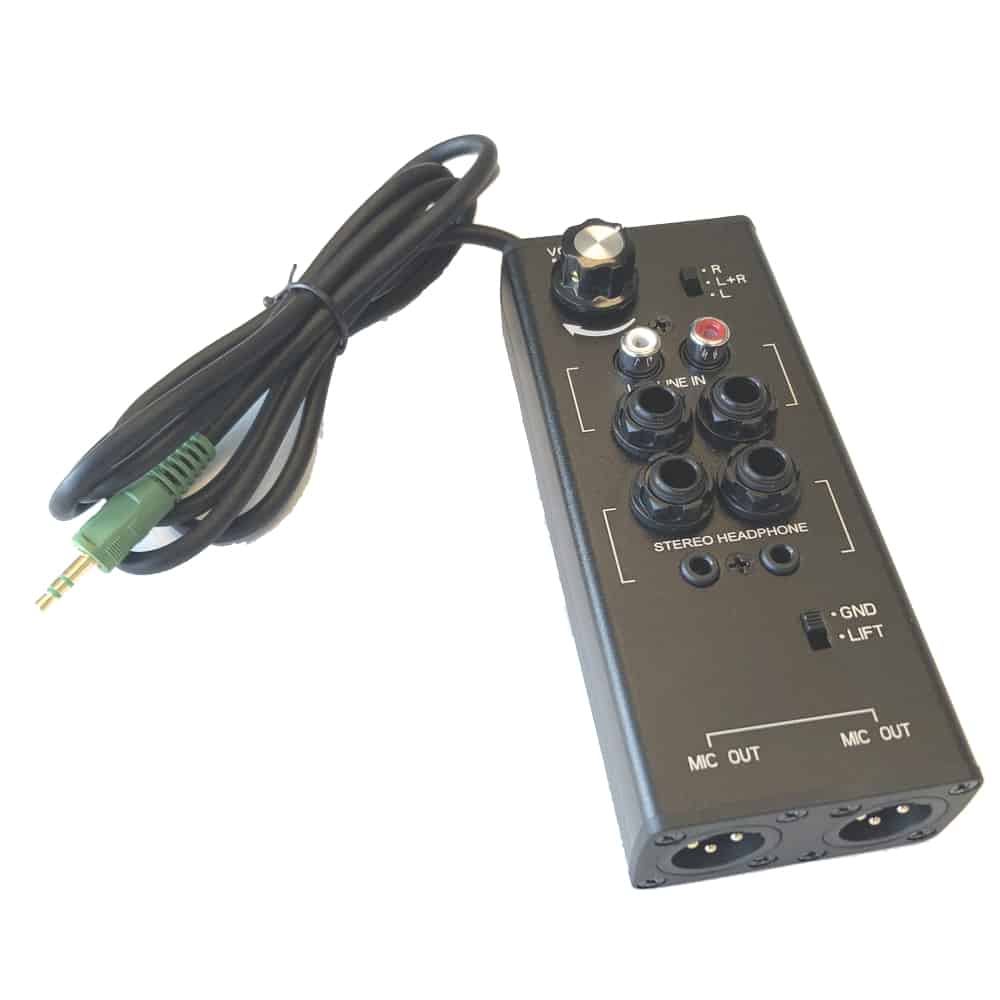

- LSP-3 is a passive direct box; you may think of it as an “extension cord” for your crowded audio mixer. It provides 1/8″ and 1/4″ stereo TRS jacks to accept headphone-level computer or instrument audio with loop out RCA phono; 1/4″ TRS mono jacks to accept low-level signals from instruments or media players; and an 1/8″ stereo plug to capture headphone audio from computers, cell phones or media players.
- There is volume control, and a selector switch for L, R or L+R combined channels and a ground lift switch. (When lifting the ground connection, be sure that input and output devices are themselves grounded.) The LSP-3 has balanced mic-level output on duplicated XLR male jacks.
- The LSP is supplied with zippered storage pouch large enough to accommodate the 6-foot pigtail cable.
- Note: LSP-3 is not a mixer. Although multiple audio sources can be connected simultaneously, it is intended to handle one active source at a time.
세부 사양
| Input Jacks | |
| Stereo 1/8 inch on 6-foot pigtail cable | |
| Stereo 1/8 inch with looped output (2) | |
| Stereo 1/4 inch with looped output (2) | |
| Mono 1/4 inch TRS for Left and Right channel input (2) | |
| RLS phono for Left and Right channels (2) | |
| Output Jacks | |
| XLR Male (2) for mic for balanced, mono, summed stereo output | |
| Dimensions | |
|---|---|
| 5” x 2¼” x 1¼” | |
| Weight | 1.1 lb. |
